BOP, Xmas Tree & LMRP Guidance System

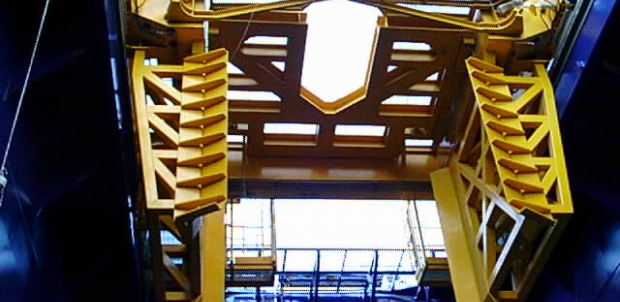

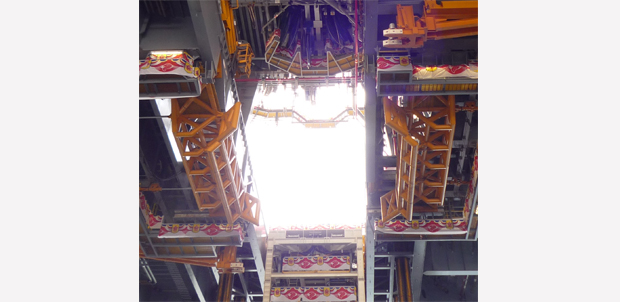

TSC provides horizontal and vertical guidance systems to prevent potential swing during lifting and stabilizing equipment. TSC guidance systems are offered as either as an accompanying piece of equipment or as a specialized unit, such as splash zone guidance (SZG) and bulkhead guidance. Examples of guidance systems mounted to other equipment includes: SZG mounted underneath BOP transporters, SZG mounted underneath spider beams and capture arms mounted on BOP cranes. Guidance system size and capacity is based on the size of the equipment being handled.
  • Splash zone guidance extends and retracts to capture and release equipment
  • Bulkhead guidance arms latch onto equipment
  • Hydraulic supply from rig
  • Can feature independent operation or can be synchronized with other equipment.
