Rotary Table

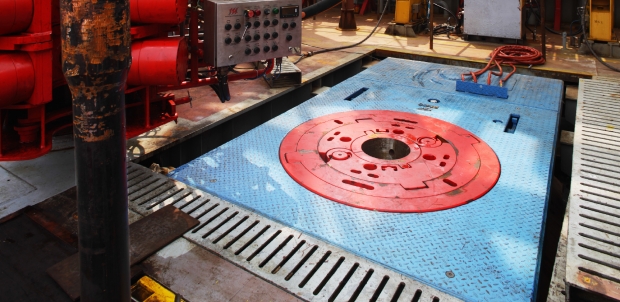

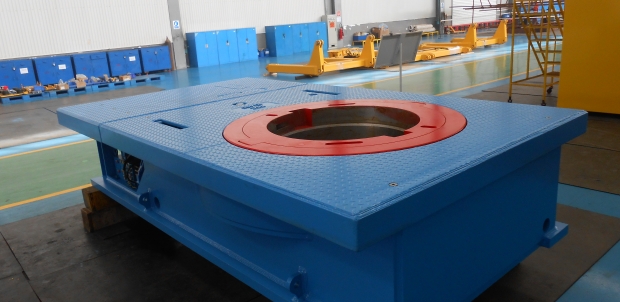

TSC RT series rotary table is provided with high reliability and serviceability. The rotary table structure has been designed to provide maximum strength to ensure larger load, increased safety and well-fit between bearings and gears. The table assembly was greatly simplified so it can be installed into the rotary housing and is easy to maintain. The RT series can be designed to meet the requirements of various drilling operations and work environments.


  • Weight (kg)6163
  • Length (mm)2392
  • Width (mm)1670
  • Height (mm)685
  • Max. Table Torque (N·m)28000
  • Static Load Capacity (kN)4500
  • Gear Ratio3.67
